Blackmagic Design Micro Converter SDI to HDMI 3G 20 Pack (no PSU)

Blackmagic Design Micro Converter SDI to HDMI 3G 20 Pack (no PSU)

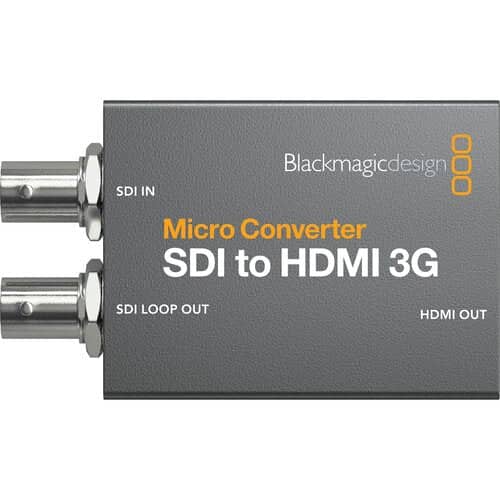

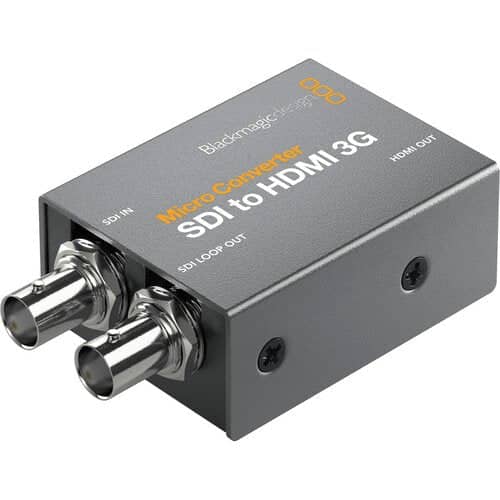

Super compact and rugged, the Micro Converter SDI to HDMI 3G from Blackmagic Design enables you to use HDMI-input monitors and televisions for production monitoring. This compact converter has one SD/HD/3G-SDI input, one HDMI output, and one SD/HD/3G-SDI loop output. It includes a 17-point 3D LUT that can be used to calibrate HDMI- or SDI-input monitors and it can output a LUT for viewing via the SDI loop output. The Micro Converter SDI to HDMI 3G also features automatic SD, HD, and Level A and B SDI detection and support for a wide range of pro broadcast resolutions including cine-style 48 fps.

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the SDI to HDMI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the separately available 100-240 VAC power supply, complete with four international socket adapters.

Features:

HDMI & SDI Outputs

One SD/HD/3G-SDI input

One HDMI output and one SD/HD/3G-SDI loop output

Compact, Rugged Design

Robust metal housing and rugged connectors

USB Type-C port for powering via a compatible component like a monitor or laptop

Updatable via the USB Type-C port and your Mac or PC

3D LUT Support

Supports a 7-point 3D LUT for colour calibrating your monitor, television, or projector

Outputs LUT for monitoring via SDI loop output

Wider Resolution Support

SDI support up to DCI 2Kp60

HDMI support up to 1080p60

Embedded Audio

Supports embedded HDMI input and embedded SDI output

LED Indicators

LED indicators for video and power signals

Versatile Power Options

Power from a monitor, laptop, or other component using the USB Type-C port

Separately available 100-240 AC power supply with four socket adapters
