Panasonic Advanced Digital Microphone

Panasonic Advanced Digital Microphone

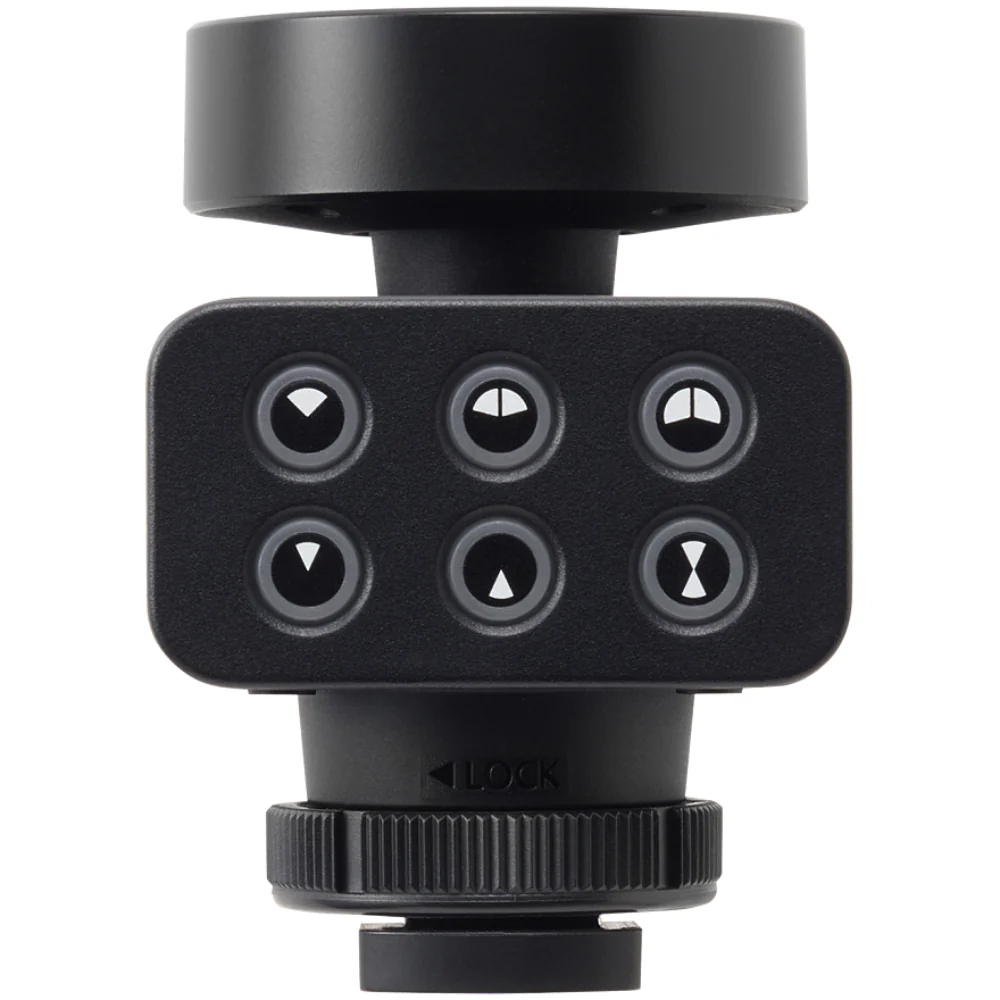

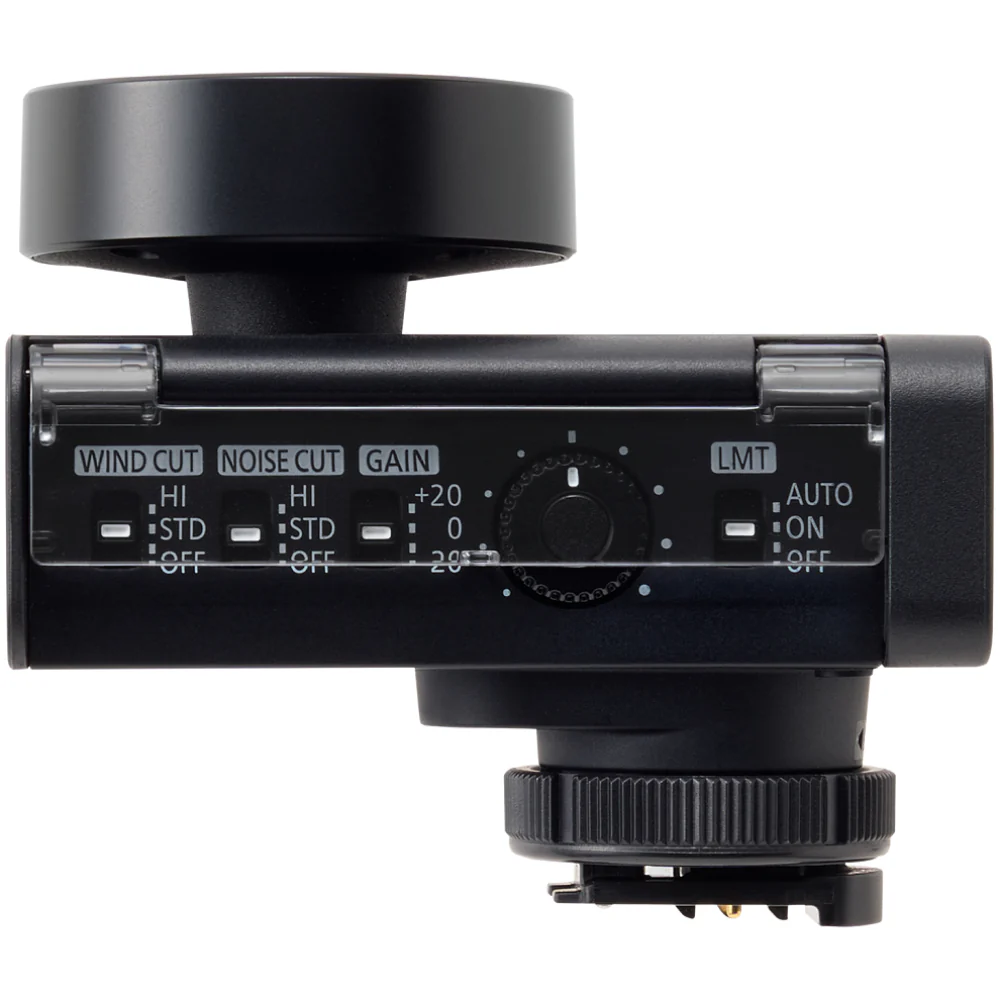

This 4-channel electret condenser microphone array offers multiple directional modes to suit different recording needs, including forward cardioid, forward supercardioid, rearward supercardioid, bidirectional supercardioid, stereo (90°), and wide stereo (120°). Wind Cut and Noise Cut settings (OFF / STD / HI) help refine audio capture in varying conditions. Gain can be set to -20 dB, 0 dB or +20 dB, while audio level adjustment ranges from -18 dB to +12 dB. When Float is selected, gain and audio level are fixed at 0 dB and the limiter (LMT OFF / ON / AUTO) is disabled. With a sensitivity of -12 dBFS (0 dB = 1 V/Pa, 1 kHz), a 40 Hz to 20 kHz frequency response, maximum input sound pressure level of 122 dBSPL or more, S/N ratio of 77 dB or greater, and dynamic range of 105 dB or more, it delivers detailed and balanced sound reproduction.

Flexible Recording Options in a Compact Design

The microphone supports Linear recording at 48 kHz/24-bit/2ch, 96 kHz/24-bit/2ch, and 48 kHz/24-bit/4ch, as well as Floating recording at 48 kHz/32-bit/2ch, 96 kHz/32-bit/2ch, and 48 kHz/32-bit/4ch (when backup audio recording of CH3/CH4 is performed). Backup Audio Recording includes Mode 1 (CH3: Omnidirectional, CH4: Omnidirectional at -20 dB) and Mode 2 (CH3: CH1 at -20 dB, CH4: CH2 at -20 dB).

Key Features:

4-Channel Electret Condenser Array

Multiple Selectable Directional Modes

Wind Cut and Noise Cut Settings

Adjustable Gain from -20 dB to +20 dB

Linear and 32-Bit Float Recording

Backup Audio Recording Modes

40 Hz to 20 kHz Frequency Response

High 122 dBSPL Maximum Input

105 dB Wide Dynamic Range

Compact and Versatile Design

What's in the Box:

Panasonic Advanced Digital Microphone

Windscreen

Pouch
