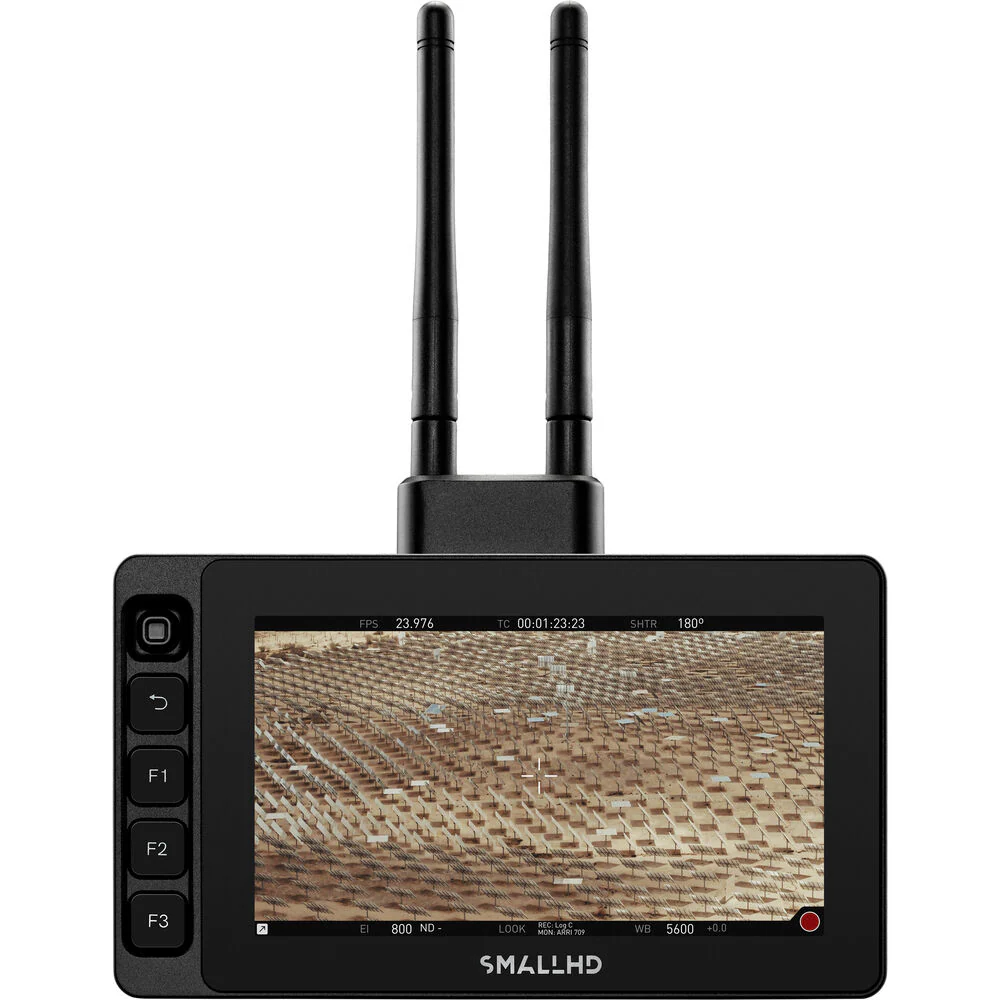

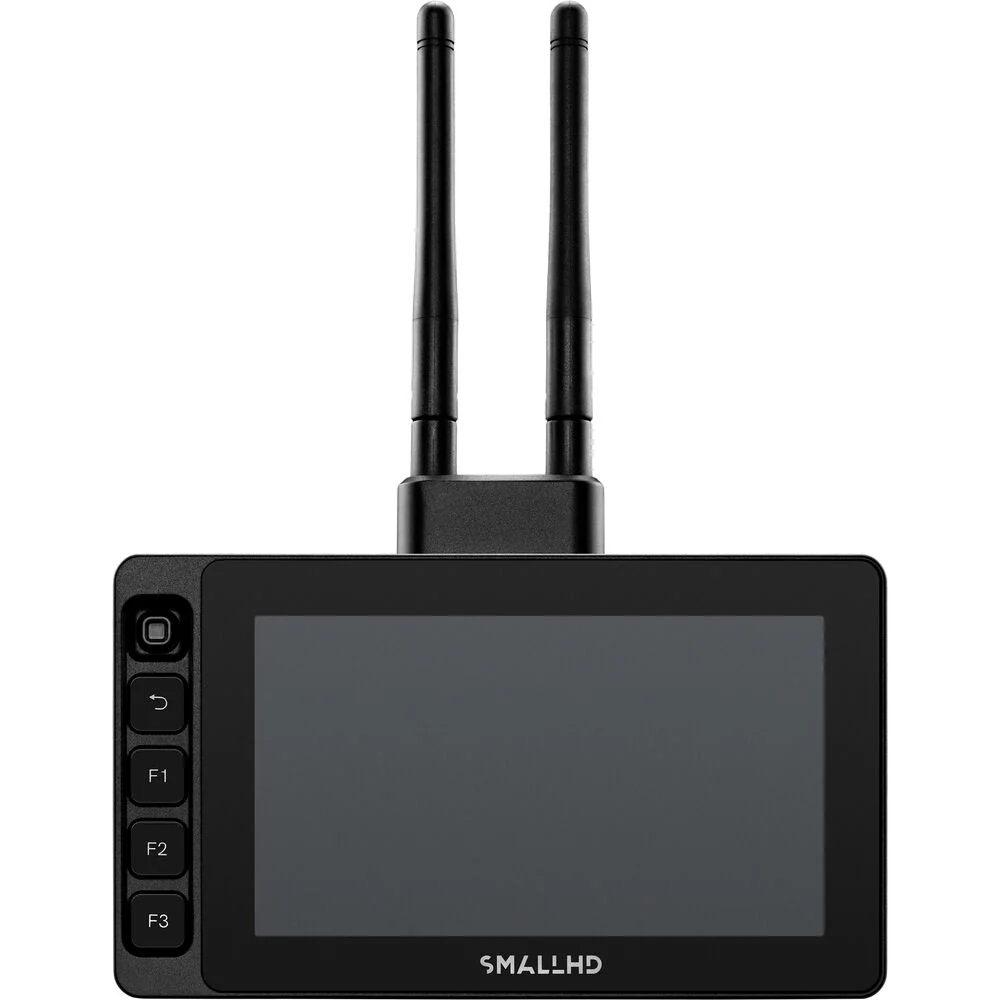

SmallHD Ultra 5 Bolt 6 TX 750 Monitor
SmallHD ULTRA 5 Bolt 6 TX 750 Monitor
Add an ultra-bright monitor with wireless control to your production rig with the SmallHD ULTRA 5 Bolt 6 TX 750 Monitor. The unit includes an ULTRA 5 bright 5" on-camera monitor and an integrated Bolt 6 transmitter from Teradek. The monitor features a 3000 bright cd/m² display, a 1920 x 1080 touchscreen LCD, HDMI and 3G-SDI inputs/outputs, camera control options, and 10-bit 4:2:2 Rec. 709 colour processing.
The built-in transmitter module provides wireless image transmission up to 750', as well as wireless camera control using an optional receiver module on the other end. The module can transmit via the 6 GHz wireless band to up to six Teradek Bolt 6 series receivers, as well as to 5 GHz receivers such as the Teradek Bolt 4K series.
Features
The Ultra 5 Bolt 6 TX 750 integrates a Bolt 6 750 Transmitter directly inside the Ultra 5 monitor, allowing you to wirelessly send the image from your camera up to 750' away
Daylight-viewable, 5" touchscreen on-camera monitor with 3000 cd/m² brightness
Slim, lightweight design with 10-bit 4:2:2 DCI-P3 colour, touchscreen LCD panel
HDMI and 3G-SDI inputs and outputs
The Bolt 6 750 TX is a real-time wireless video transmitter that supports video signals up to 4K30 via HDMI with no image delay, allowing you to send colour-accurate, True HDR images in less than 0.001 seconds
Buttons around the monitor allow you to use the monitor in any conditions
The PageOS 5 toolset with EL Zone Exposure Assist, best-in-class waveform, false colour, Look-Around Camera Control (sold separately), advanced Teradek RT overlays, and more
Four 1/4"-20 mounting threads on the left, right, bottom, and back of the monitor
Power using a 2-pin power input
Optional RED camera control via the micro-USB port
Optional ARRI/Sony VENICE camera control via the Ethernet port
Durable aluminium chassis
Key Features:
5" 1920 x 1080 Touchscreen Display
Built-In Bolt 6 Wireless Transmitter
3G-SDI & HDMI Inputs & Outputs
6 GHz Wireless Transmission up to 750'
Bright 3000 cd/m² LCD Panel
10-Bit 4:2:2 DCI-P3 Colour Gamut
5-Pin USB & Ethernet Control Ports
Power via 2-Pin LEMO Input
PageOS 5 with Imaging Tools
Milled Aluminium Unibody Housing
What's in the Box:
SmallHD ULTRA 5 Bolt 6 TX 750 Monitor
