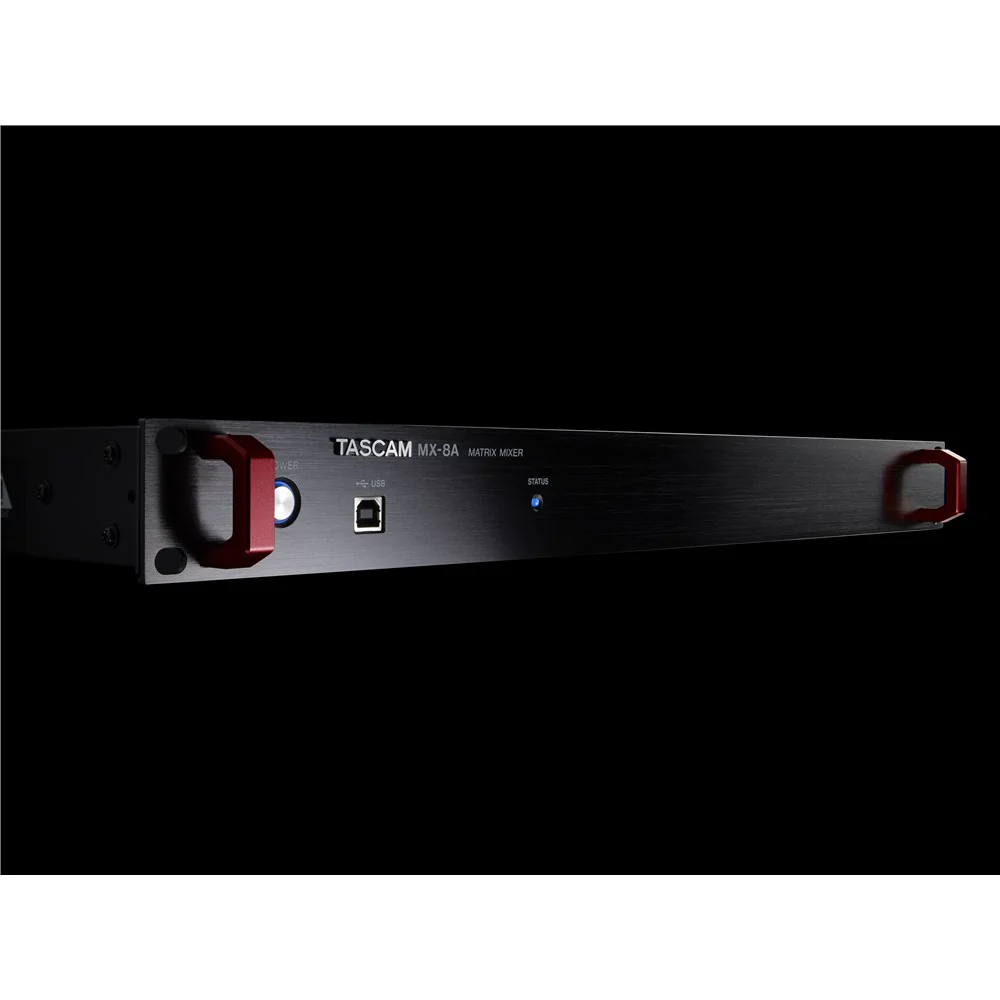

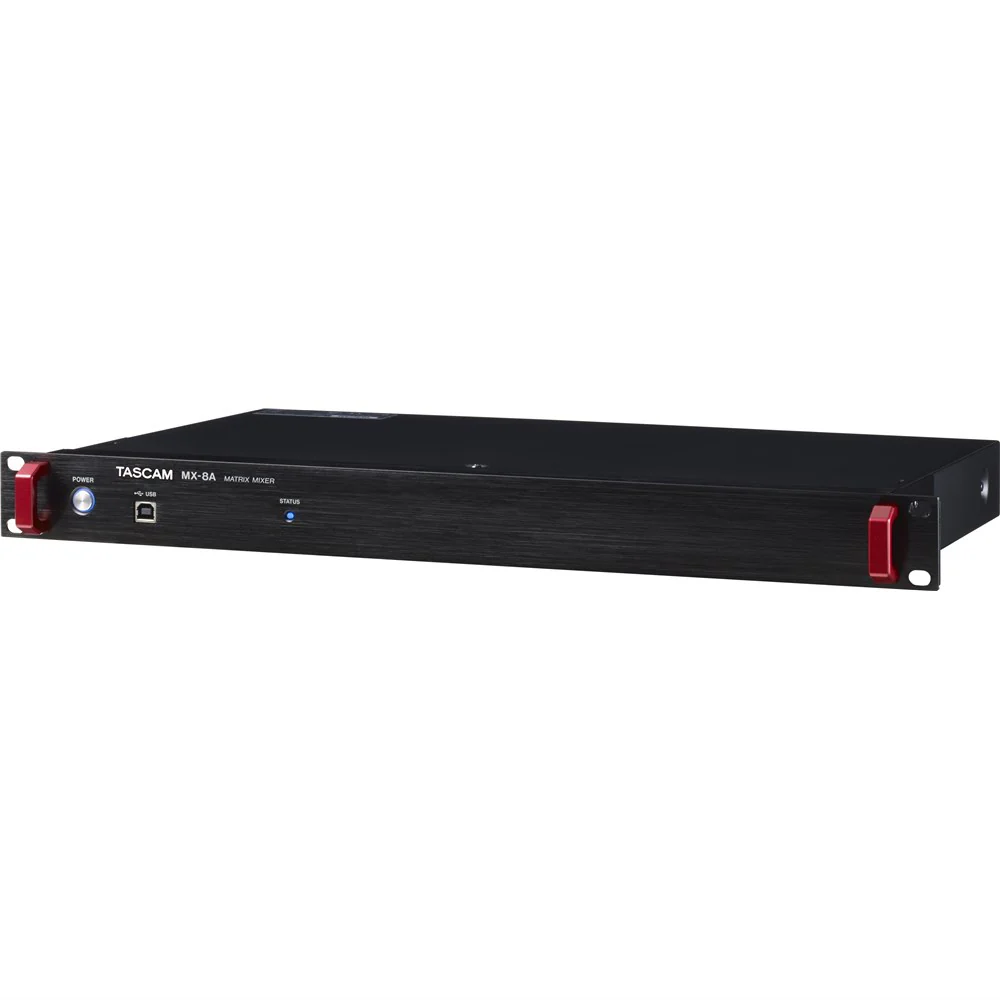

Tascam 8-Input / 8-Output Matrix Mixer with DSP

Tascam 8-Input / 8-Output Matrix Mixer with DSP

The Tascam processor features 8 mic/line inputs with +48V phantom power and remote mic gain control, along with 8 line outputs using Euroblock terminals-ideal for contractor installations. It includes a range of built-in DSP functions for optimised performance across various environments, remote control via Ethernet, and two control software options: Tascam MX Connect for integrators, enabling full system configuration and scene management, and Tascam EZ Connect for end-users, offering simple volume and area control. Additional highlights include flexible scene presets (up to 50), a timer event function (available in future updates), a 2-in/2-out USB audio interface for playback and recording via computer, tablet, or smartphone, RS-232C serial control compatibility, and a compact 1U rack-mountable design.

Key Features:

8-Channel Mic/Line Inputs

Remote Mic Gain Control Supported

8 Line Outputs for Flexible Routing

Euro Block Terminals for Contractor Use

Built-In DSP Functions for Various Environments

Remote Control Capability via Ethernet

MX Connect Software for Integrators

EZ Connect Software for End Users

Supports Windows, Mac, iOS, and Android

Up to 50 Flexible Scene Presets

Timer Event Function

2-In and 2-Out USB Audio Interface

Supports Playback and Recording

RS-232C Terminal for External Control Integration

Compact 1U Rackmount Design

What's in the Box:

Tascam 8-Input / 8-Output Matrix Mixer with DSP

Power Cord

Euroblock Plug

Cable Band Kit

Rackmount Screw Kit
